Brand:
S4AItem NO.:

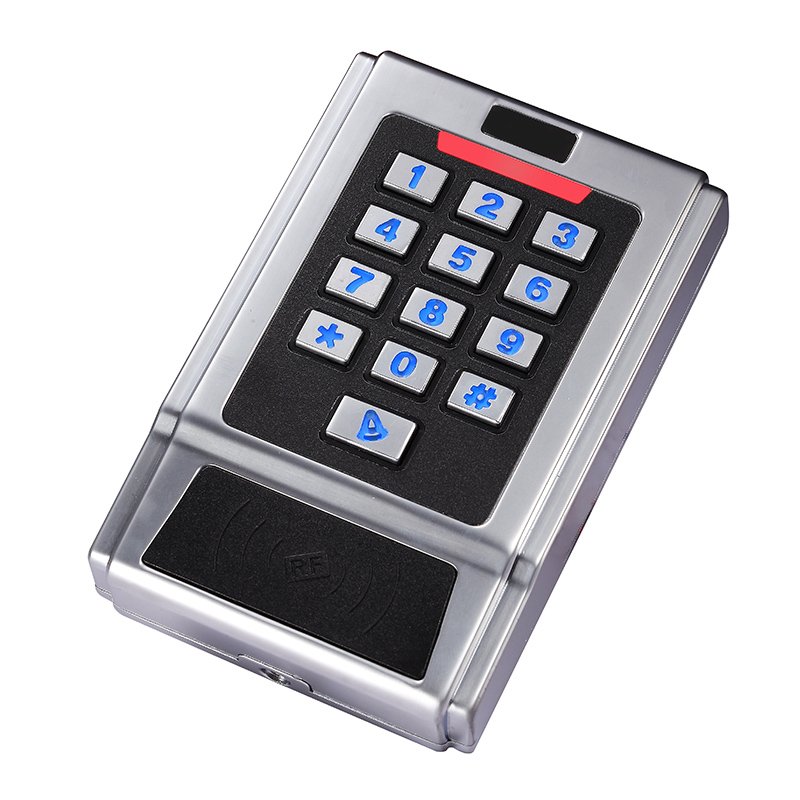

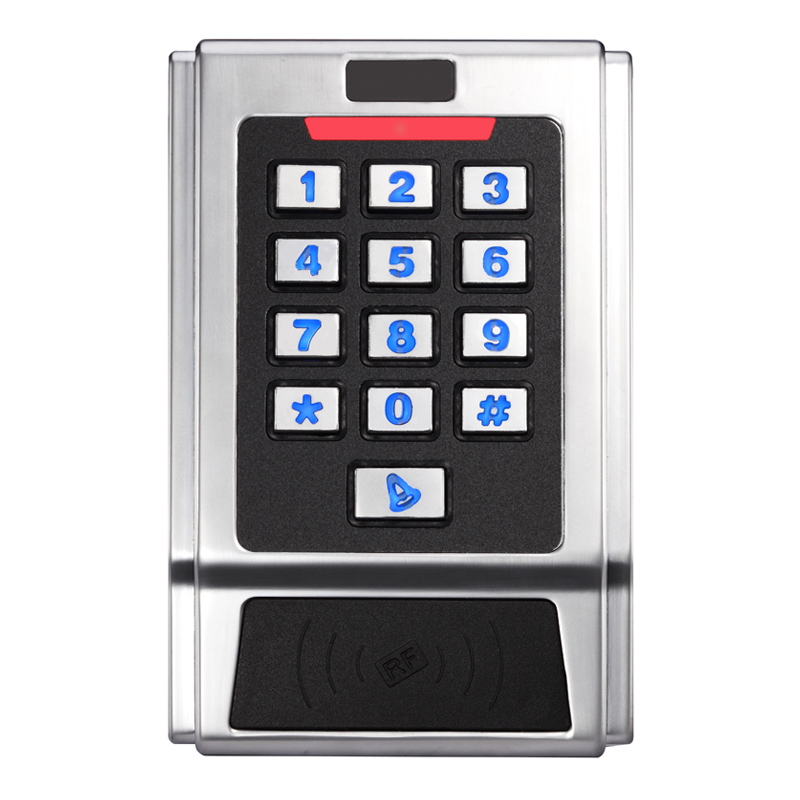

CC3Waterproof Metal Access Control
Model No.: CC3 EM, HID, MF, CPU
Two relays support up to 2000 users in total for two zones
Have 7 working modes
1. Wiegand reader
2. Standalone for single door
3. Standalone for two doors
4. With external reader for two doors
5. Two units interlocked for two doors
6. Anti-passback for single door
7. Anti-passback for two doors.
Waterproof structure design, fit for IP68 waterproof degree

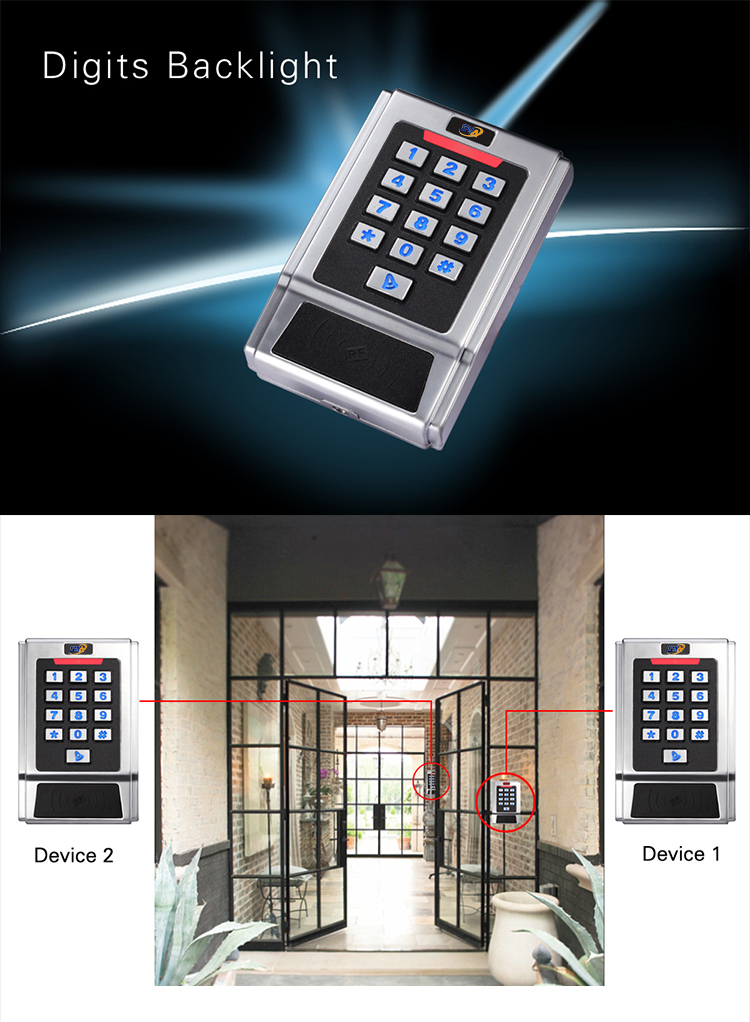

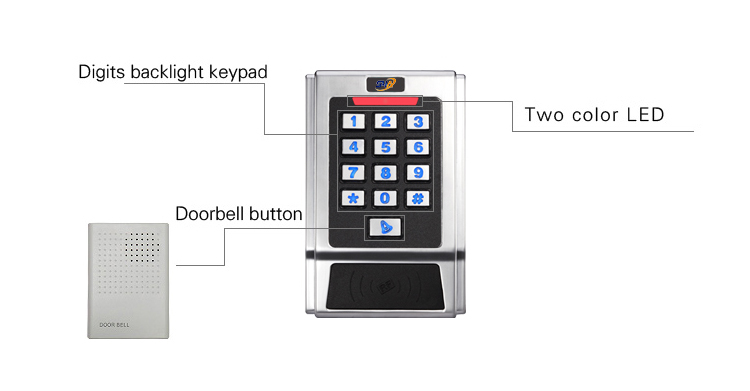

Digital backlit keypad, the backlit can be set to Normal ON, Normal OFF, or Human-approach
Can add consecutive user cards quickly in one time
Card type | EM or EM+HID or MF+CPU |
Waterproof degree | IP68 |
User capacity | 2000 card user card, 2000 user password |
Environment Humidity | 10%～90% |
Lock output | ≤3A |
Working voltage | DC12V±10％ |
Static electricity | ≤30mA |
Alarm output | ≤20A |
Output short circuit protection time | ≤100μS |
Card read distance | 5～8cm |
Ambient temperature | -45℃～60℃ |
Door Opening Time | 0～99s(Adjustable) |

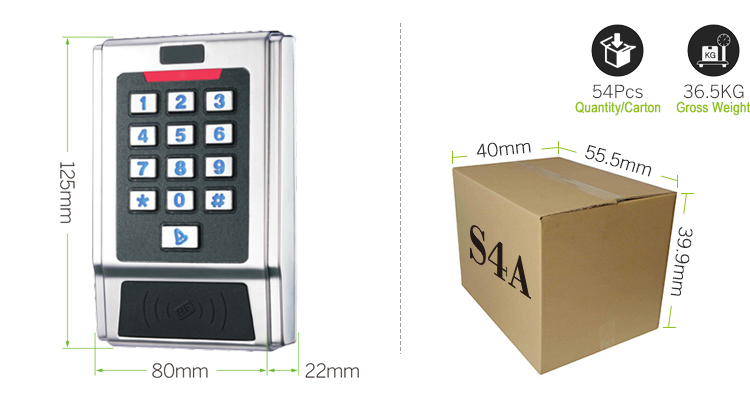

Dimension | 125*80*22mm |
Waterproof Door Metal Access Controller System | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
CC3EM | 54pcs | 36.5KG | 55.5x39.9x40cm |
CC3EH | 54pcs | 36.5KG | |
CC3MC | 54pcs | 36.5KG | |
S4A User Manual CC3_Waterproof Door Metal Access Controller System
