Single Door Wireless Access Kit

> Waterproof conforms to IP66 (Wireless Keypad)

> Communication frequency: 433MHz

> 600 PIN/card users

> Communication distance: 50m Max

> Tri-color LED status display

  • Brand:

    S4A
  • Item NO.:

    SK7
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Single Door Wireless Access Kit

Model No.: SK7

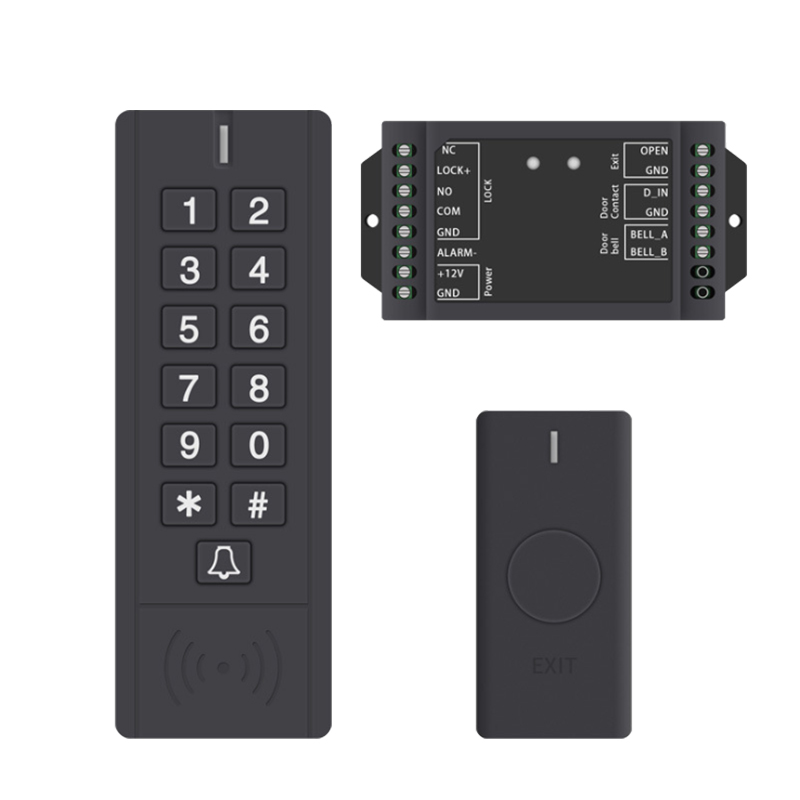

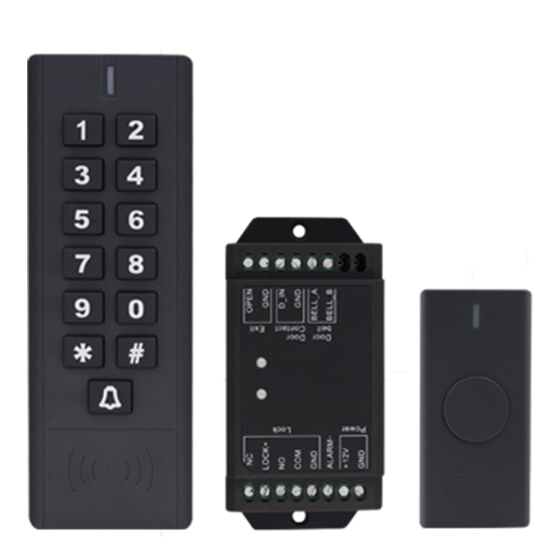

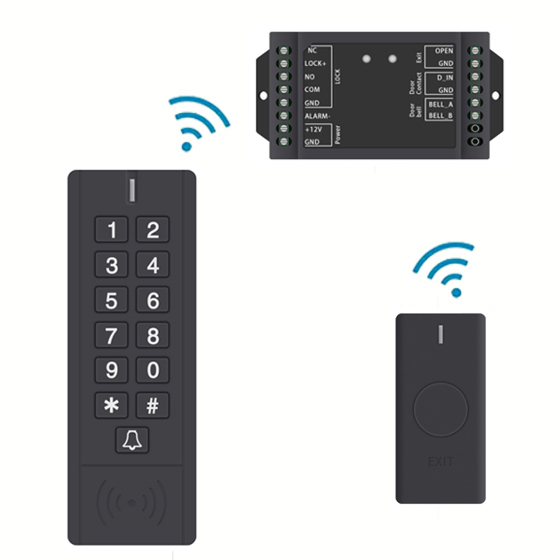

The SK7 is a single door wireless access control, consists of a wireless & waterproof keypad, a mini controller, and a wireless exit button. TEA + Rolling Code of the encryption algorithm and the split design guarantees higher-secure.


> Waterproof conforms to IP66 (Wireless Keypad)

> Communication frequency: 433MHz

> 600 PIN / card users (100 visitor users + 500 common users)

> PIN length: 4~8 digits

> Communication distance: 50m Max

> Door contact, alarm and doorbell output

> Backlit keypad

> Pulse mode, toggle mode

> Tri-color LED status display

> Ultra-low power consumption (wireless keypad<10uA, Wireless Exit Button: <10uA)

> Supports integrate 1 keypad and 1 exit button, or 2 keypads


User Capacity

600 PIN/card users

(500 common users + 100 visitor users)

PIN Length

4~8 Digits

Card Type

125KHz EM Card

Operating Voltage

Wireless Keypad

3units of AAA batteries

Mini Controller

12V DC

Wireless Exit Button

2032 Lithium battery

Current

Idle Current

Wireless Keypad:

<10uA

Mini Controller:

<20Ma

Wireless Exit Button:

<10uA

Working Current

Wireless Keypad:

<80mA

Mini Controller:

<50mA

Wireless Exit Button:

<30uA

Communication Frequency

433MHz

Communication Distance

50m Maximum

Relay Contact Load

2Amp Maximum

Environment

Outdoor (Wireless Keypad)

Operating Temperature

-40℃~60℃(-40°F~140°F)

Operating Humidity

10%~9%RH

Physical

ABS Shell

Dimensions

Wireless Keypad:

L134 x W48 x D25(mm)

Mini Controller:

L85 x W50 x D25(mm)

Wireless Exit Button:

L80 x W38 x D15(mm)

Unit Weight

Wireless Keypad:

150g

Mini Controller:

62g

Wireless Exit Button:

34g

Shipping Weight

300g


Single Door Wireless Access Kit

Single Door Wireless Access Kit

Single Door Wireless Access Kit

S4A User Manual SK7_Single Door Wireless Access Kit
