> Size: 240 x 240 x 35mm
> Voltage: DC12-15V
> Reading Range: 70~100CM
> Operating mode: WG26/34, RS232/485
> Working frequency: 125KHz /134.2KHz
Brand:
S4AItem NO.:

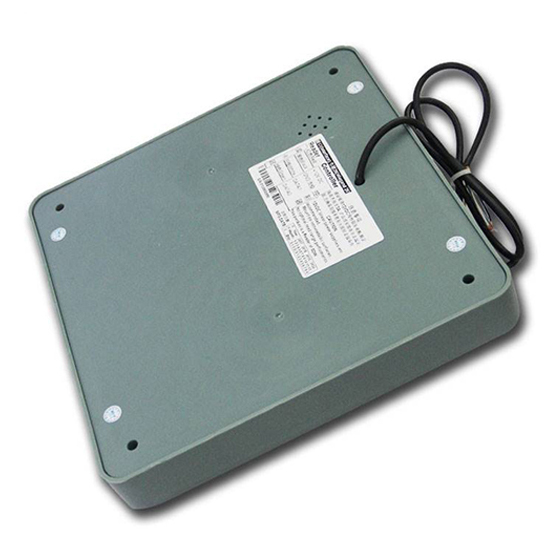

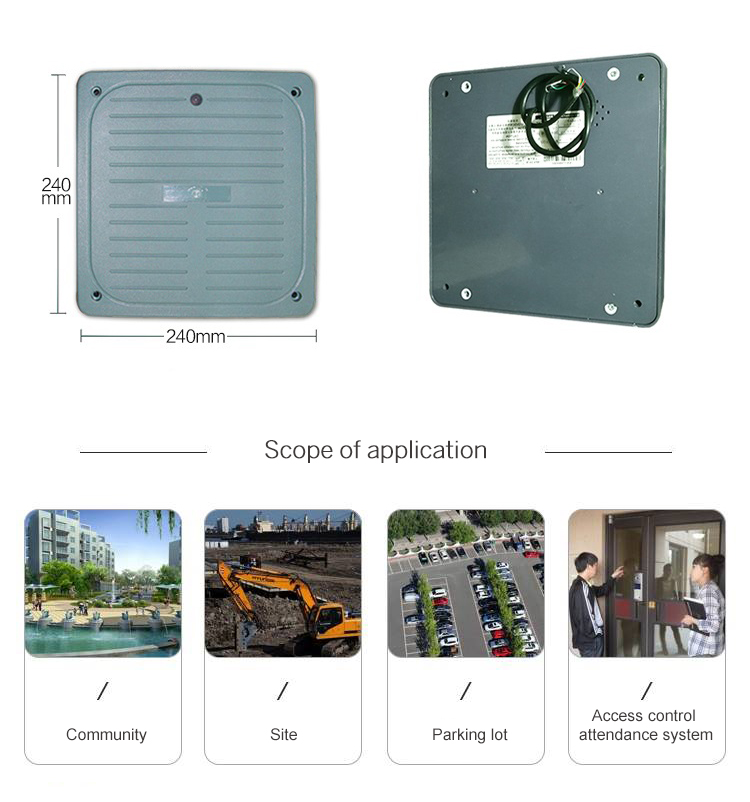

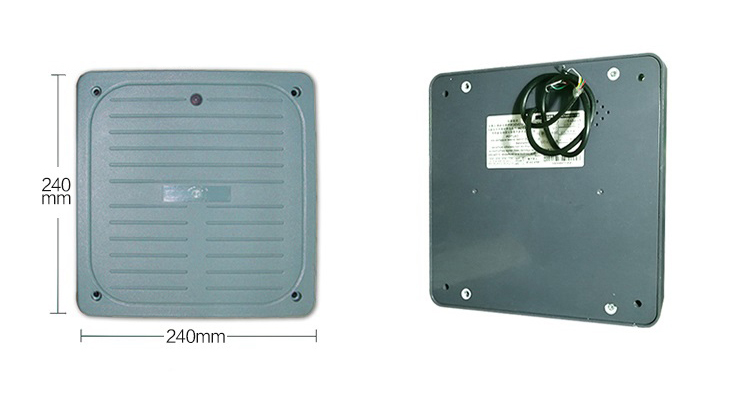

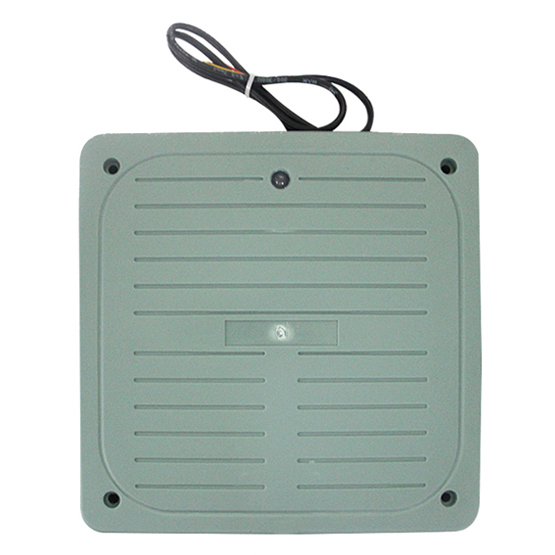

PCD-130Middle Distance RFID Access Reader
Model No.: PCD-130
Shell material | PVC |
Reading Range | 70-100cm |
Card type | ID card |
Working frequency | 125KHz/134.2KHz |
Voltage | DC12-15V |
Card reading time | ＜0.2s |
Operating temperature | -25℃~75℃ |
Operating mode | WG26/34, RS232/485 |
Size | 240x240x35mm |
S4A Datesheet_Middle Distance RFID Access Reader
> Size: 260 x 260 x 35mm> Voltage: DC5-16V> Reading Range: 70~100CM> Output Format: Wiegand 26 (Factory default, customized Wiegand 34, RS485/232)> Card Type EM-ID Middle distance card> Comunication Distance WG≤100M, RS485≤1200M
125KHz workable with PCD-110series.Reading distance up to 1M

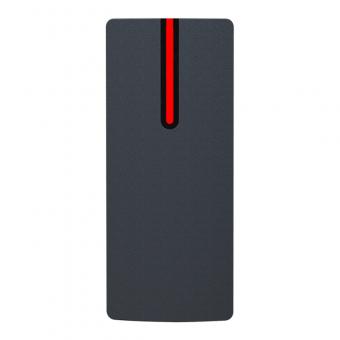

PCD-110 Middle Distance Proximity Card Reader> Frequency: 125KHz> Reading distance: 70-100CM
Control 1 door via TCP/IP with AC110~240V 5A access power supply and backup battery space

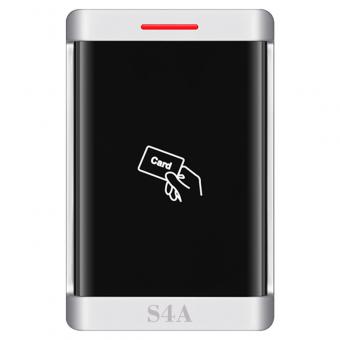

> 999 users, user data can be transferred> Multi-access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs> Can connect with any reader with Wiegand 26~44, 56, 58, 64 bits output> Can connect with any keypad reader with 4bits, 8bits (ASCII) output> 12~28V AC/DC power input, 12V DC output> Can connect with external alarm and door contact

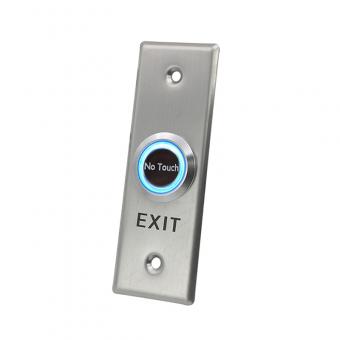

>Sensor type: Infrared Photoelectric Sensor>Alarm current: 120mA-130mA>Battery life: 3 years standby time
> With LED (Red only)> Voltage: DC12V or DC24V> Current Draw: 12V/500mAx2 24V/250mAx2
>Size: 88X50X31mm (including installation hole 96.5X50X31mm)>Voltage and current: 9~15V100mA>Relay maximum load: AC250V10A, DC30V10A
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
