Hydraulic Door Closer Hydraulic Door Closer Hydraulic Door Closer

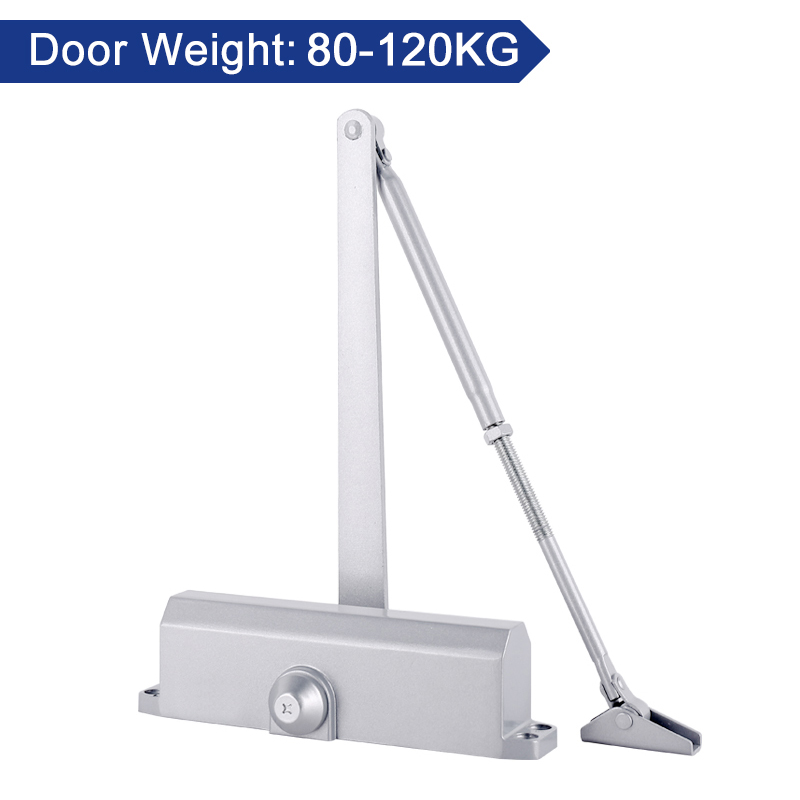

Hydraulic Door Closer 80-120KG

> Door Weight: 80-120KG

> Material: Aluminum alloy

> Door Width: 1030~1250mm

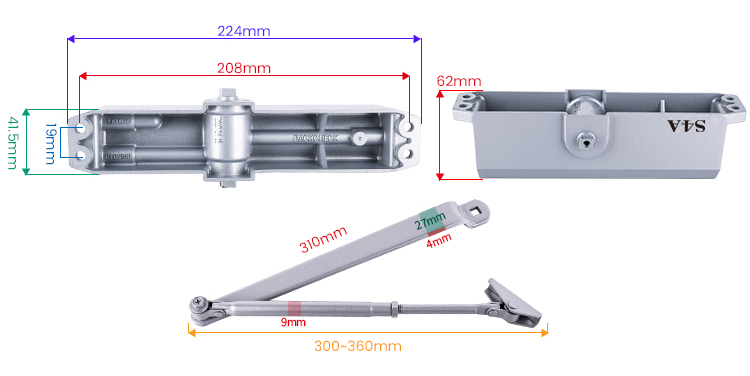

> Dimensions: 224x62x41.5mm

  • Brand:

    S4A

  • Item NO.:

    DL-120
Inquire Now
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Hydraulic Door Closer 80-120KG

Model No.: DL-120


Application:

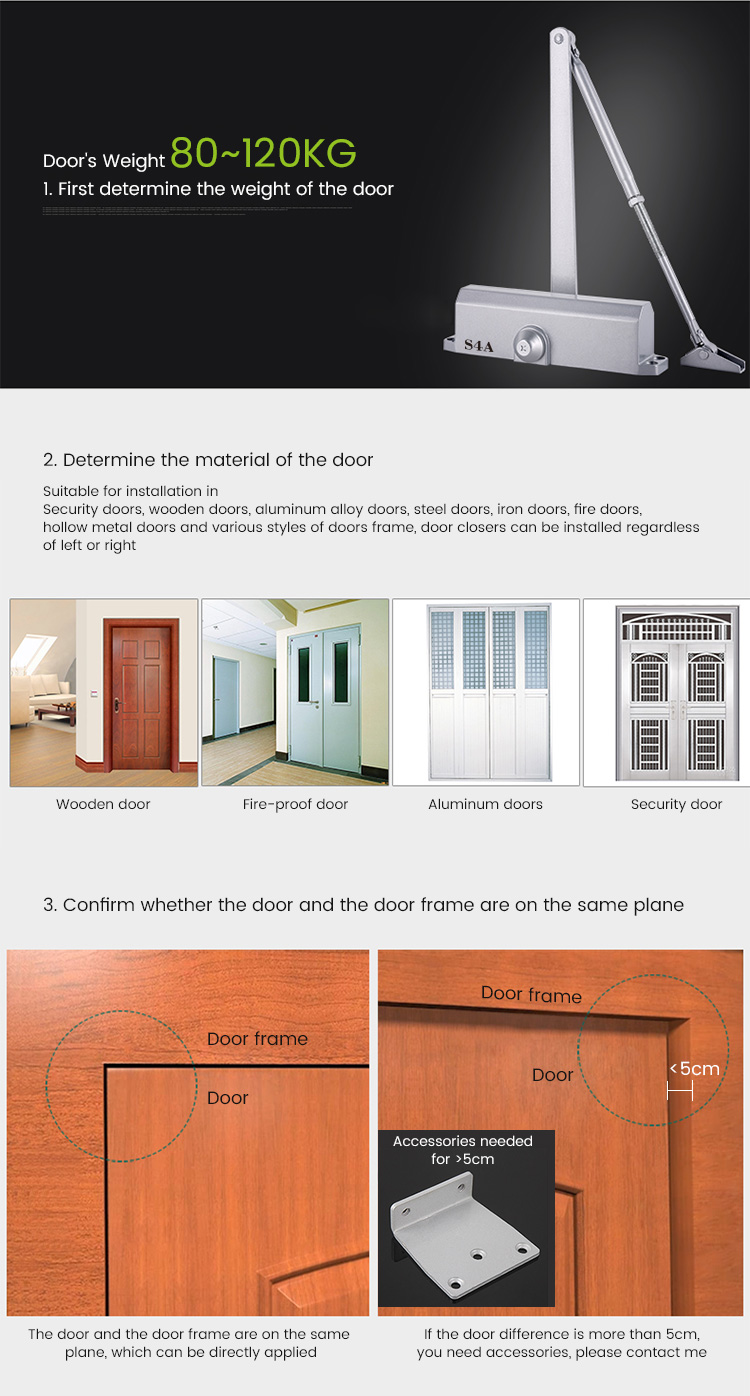

The door closer is only suitable for one-way casement doors and is generally not used for frameless glass doors.


Colour

Silver gray

Exterior

Square

Installation hole distance

208x19

Door width

1030~1250mm

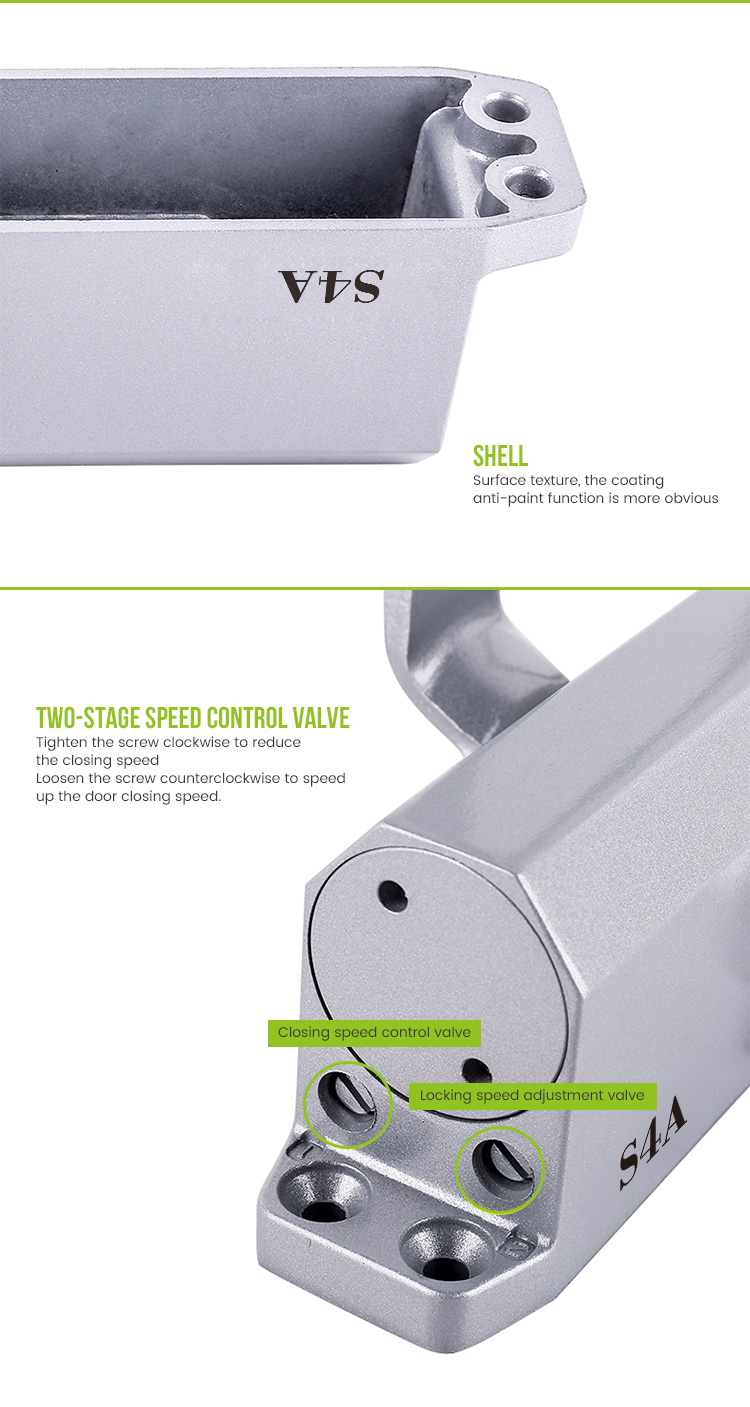

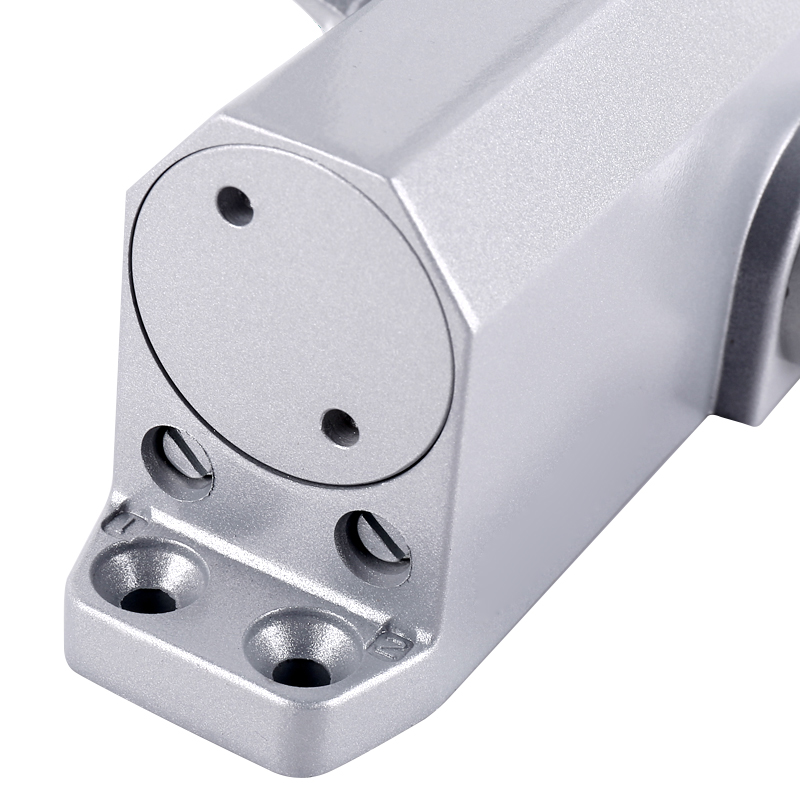

Closing speed

100°~180° adjustable

Blocking speed

0°~15° adjustable

Ambient temperature

-30℃~50℃

Scope of application

Shopping mall entrance doors, apartment doors, security doors, hotel suites, family doors, etc.

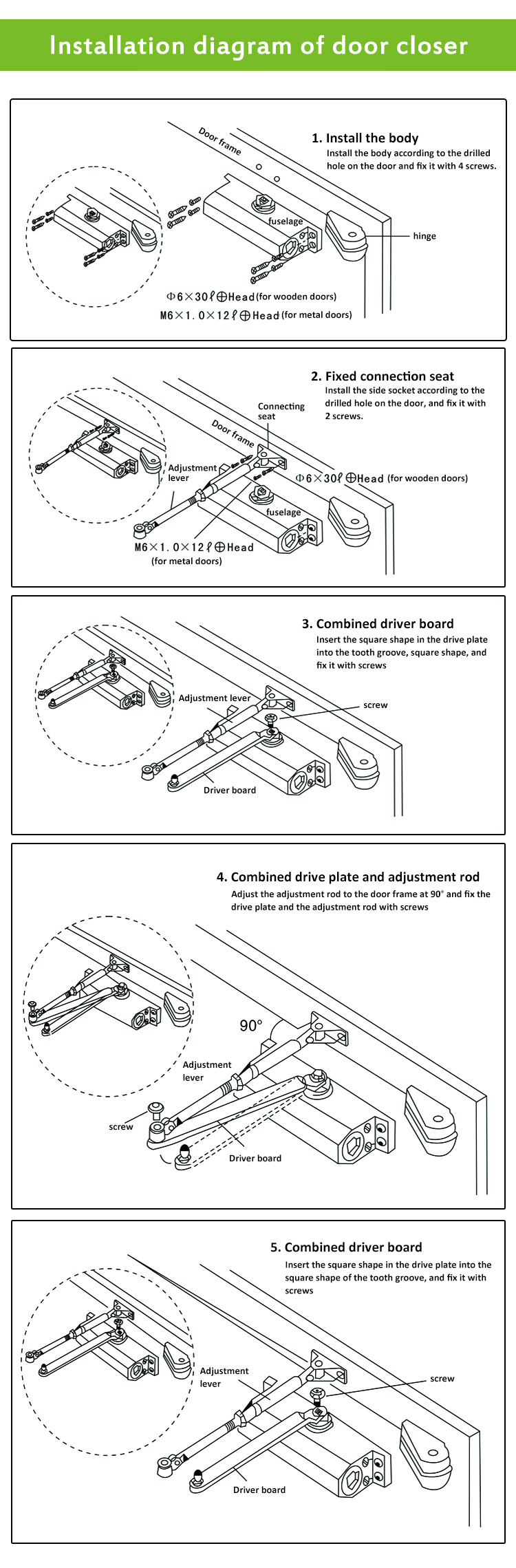

Before the door closer is installed, the central axis of the door closer cannot be rotated 180°, otherwise it will damage the door closer and cause it to be unusable.


Hydraulic Door CloserHydraulic Door CloserHydraulic Door CloserHydraulic Door CloserHydraulic Door Closer

Hydraulic Door Closer

Hydraulic Door Closer

Hydraulic Door Closer

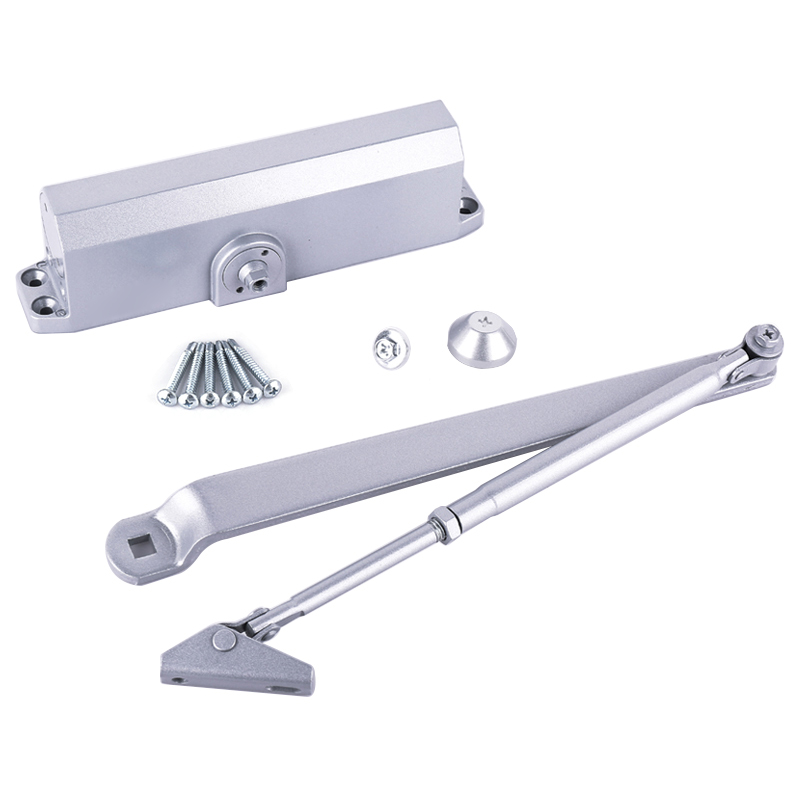

Hydraulic Door Closer 80-120KG

Model No.

Quantity/Carton

Net Weight

Gross Weight

Carton Size

DL-120

10 PC

6.18 KG

24.4 KG

33x18x52 CM



Hydraulic Door Closer

S4A_Datesheet_Hydraulic Door Closer 80-120KG

Download
